Fitting transit times¶

import numpy as np
import matplotlib.pyplot as plt

import exoplanet as xo

np.random.seed(3948)
true_periods = np.random.uniform(8, 12, 2)
true_t0s = true_periods * np.random.rand(2)
t = np.arange(0, 80, 0.01)
texp = 0.01
yerr = 5e-4

# Compute the transit times for a linear ephemeris
true_transit_times = xo.orbits.ttv.compute_expected_transit_times(
    t.min(), t.max(), true_periods, true_t0s
)

# Simulate transit timing variations using a simple model
true_ttvs = [
    (0.05 - (i % 2) * 0.1) * np.sin(2 * np.pi * tt / 23.7)
    for i, tt in enumerate(true_transit_times)
]
true_transit_times = [tt + v for tt, v in zip(true_transit_times, true_ttvs)]

# Plot the true TTV model
fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(10, 5), sharex=True)
ax1.plot(true_transit_times[0], true_ttvs[0], ".k")
ax1.axhline(0, color="k", lw=0.5)
ax1.set_ylim(np.max(np.abs(ax1.get_ylim())) * np.array([-1, 1]))
ax1.set_ylabel("$O-C$ [days]")

ax2.plot(true_transit_times[1], true_ttvs[1], ".k")
ax2.axhline(0, color="k", lw=0.5)
ax2.set_ylim(np.max(np.abs(ax2.get_ylim())) * np.array([-1, 1]))
ax2.set_ylabel("$O-C$ [days]")

ax2.set_xlabel("transit time [days]")
_ = ax1.set_title("true TTVs")

import pymc3 as pm
import pymc3_ext as pmx
import aesara_theano_fallback.tensor as tt

np.random.seed(9485023)

with pm.Model() as model:

    # This part of the model is similar to the model in the `transit` tutorial
    mean = pm.Normal("mean", mu=0.0, sd=1.0)
    u = xo.QuadLimbDark("u", testval=np.array([0.3, 0.2]))
    logr = pm.Uniform(
        "logr",
        lower=np.log(0.01),
        upper=np.log(0.1),
        shape=2,
        testval=np.log([0.04, 0.06]),
    )
    r = pm.Deterministic("r", tt.exp(logr))
    b = xo.ImpactParameter(
        "b", ror=r, shape=2, testval=0.5 * np.random.rand(2)
    )

    # Now we have a parameter for each transit time for each planet:
    transit_times = []
    for i in range(2):
        transit_times.append(
            pm.Normal(
                "tts_{0}".format(i),
                mu=true_transit_times[i],
                sd=1.0,
                shape=len(true_transit_times[i]),
            )
        )

    # Set up an orbit for the planets
    orbit = xo.orbits.TTVOrbit(b=b, transit_times=transit_times)

    # It will be useful later to track some parameters of the orbit
    pm.Deterministic("t0", orbit.t0)
    pm.Deterministic("period", orbit.period)
    for i in range(2):
        pm.Deterministic("ttvs_{0}".format(i), orbit.ttvs[i])

    # The rest of this block follows the transit fitting tutorial
    light_curves = xo.LimbDarkLightCurve(u).get_light_curve(
        orbit=orbit, r=r, t=t, texp=texp
    )
    light_curve = pm.math.sum(light_curves, axis=-1) + mean
    pm.Deterministic("light_curves", light_curves)

    # ******************************************************************* #
    # On the folowing lines, we simulate the dataset that we will fit     #
    #                                                                     #
    # NOTE: if you are fitting real data, you shouldn't include this line #
    #       because you already have data!                                #
    # ******************************************************************* #
    y = pmx.eval_in_model(light_curve)
    y += yerr * np.random.randn(len(y))
    # ******************************************************************* #
    # End of fake data creation; you want to include the following lines  #
    # ******************************************************************* #

    pm.Normal("obs", mu=light_curve, sd=yerr, observed=y)

    map_soln = model.test_point
    map_soln = pmx.optimize(start=map_soln, vars=transit_times)
    map_soln = pmx.optimize(start=map_soln, vars=[r, b])
    map_soln = pmx.optimize(start=map_soln, vars=transit_times)
    map_soln = pmx.optimize(start=map_soln)

plt.plot(t, y, ".k", ms=4, label="data")
for i, l in enumerate("bc"):
    plt.plot(
        t, map_soln["light_curves"][:, i], lw=1, label="planet {0}".format(l)
    )
plt.xlim(t.min(), t.max())
plt.ylabel("relative flux")
plt.xlabel("time [days]")
plt.legend(fontsize=10)
_ = plt.title("map model")

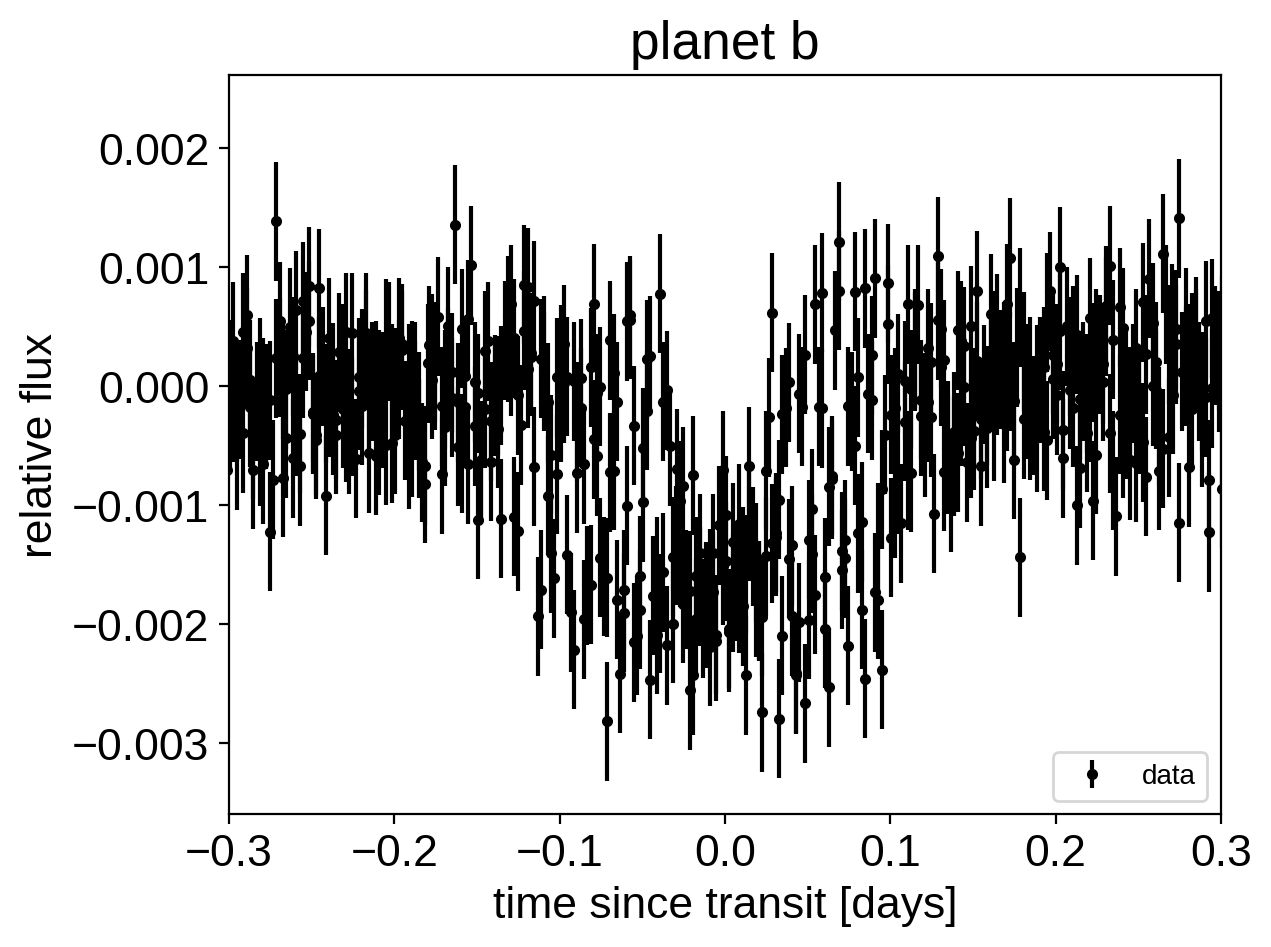

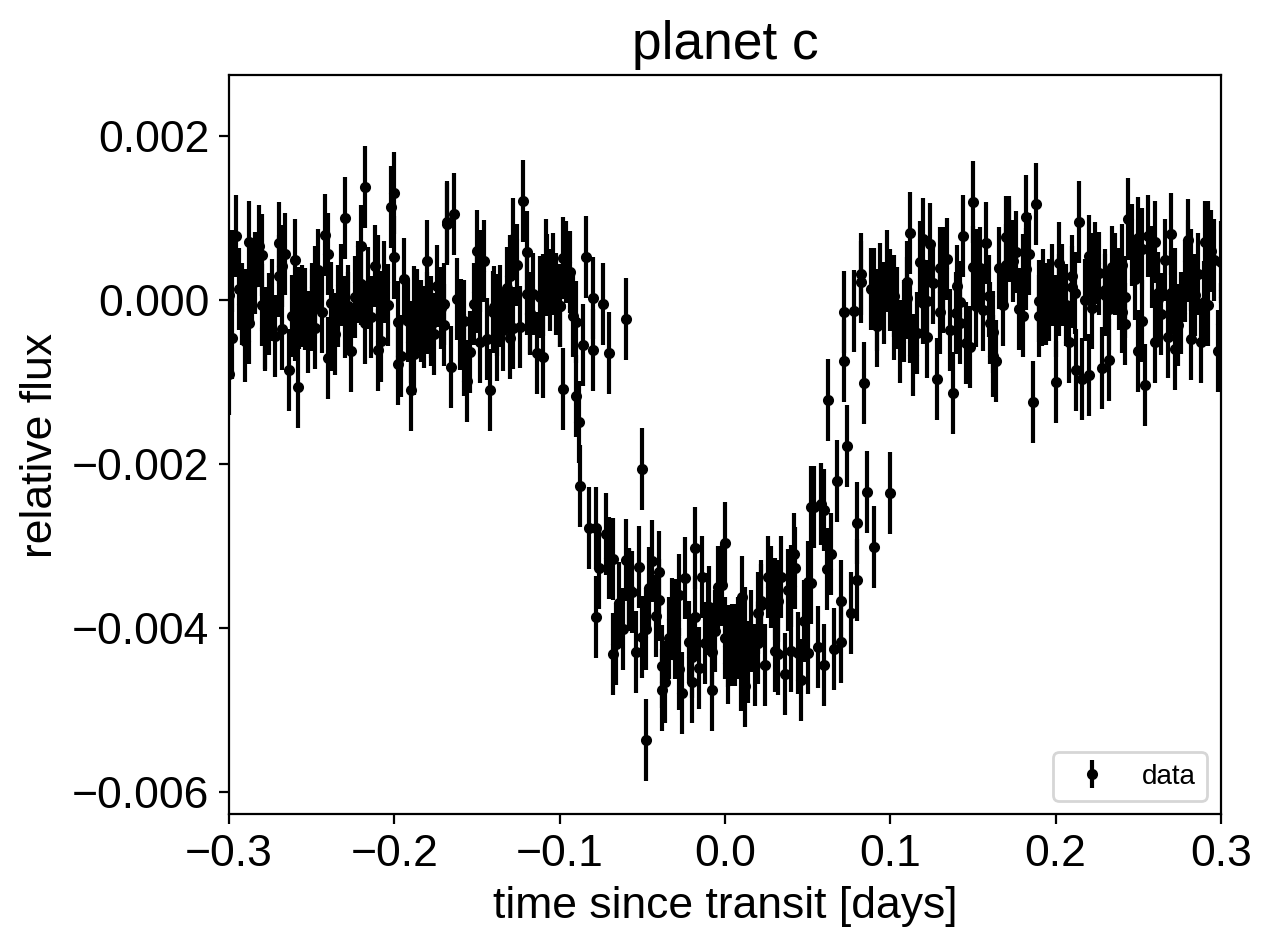

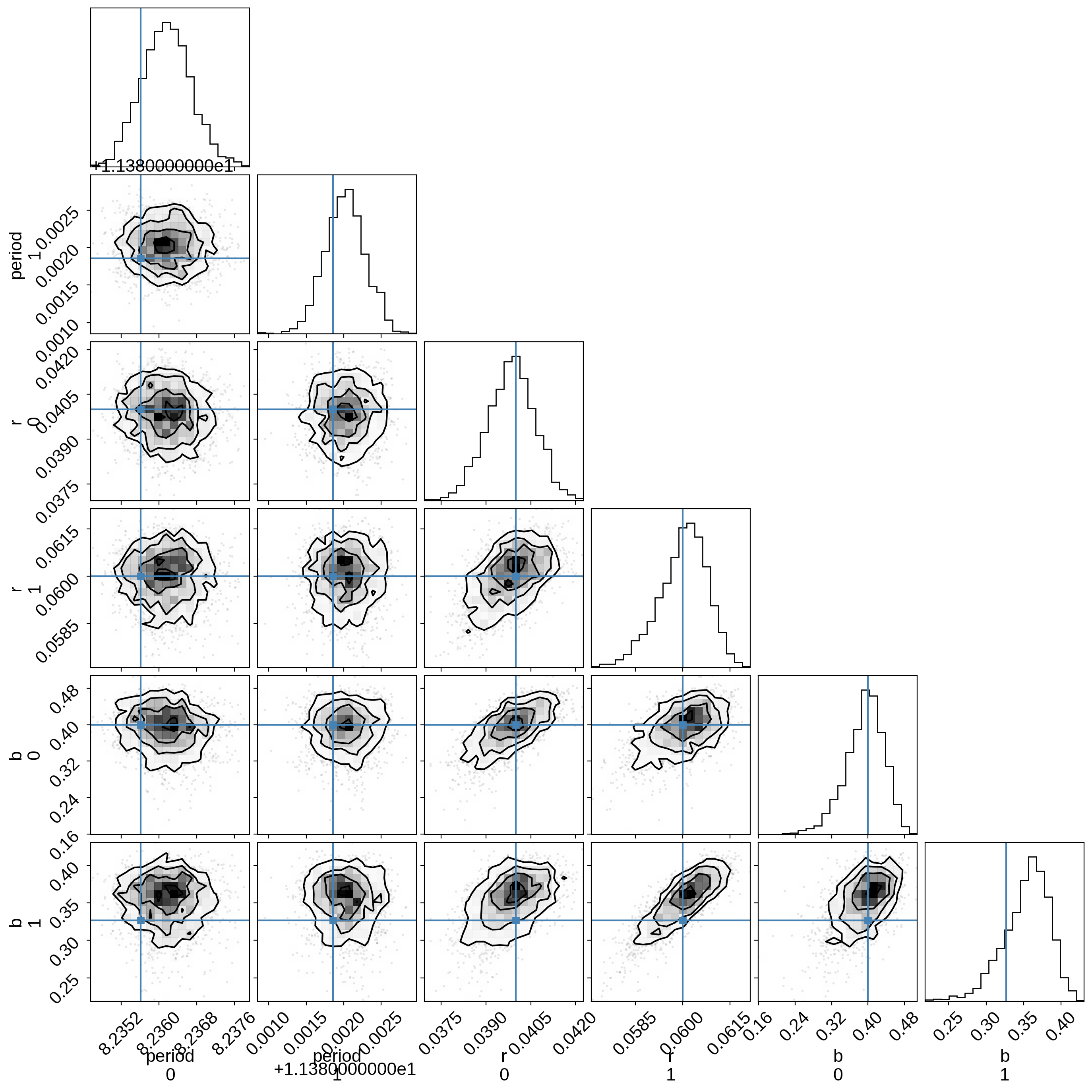

for n, letter in enumerate("bc"):
    plt.figure()

    # Get the posterior median orbital parameters
    p = map_soln["period"][n]
    t0 = map_soln["t0"][n]

    # Compute the median of posterior estimate of the contribution from
    # the other planet. Then we can remove this from the data to plot
    # just the planet we care about.
    other = map_soln["light_curves"][:, (n + 1) % 2]

    # Plot the folded data
    x_fold = (t - t0 + 0.5 * p) % p - 0.5 * p
    plt.errorbar(
        x_fold, y - other, yerr=yerr, fmt=".k", label="data", zorder=-1000
    )

    plt.legend(fontsize=10, loc=4)
    plt.xlim(-0.5 * p, 0.5 * p)
    plt.xlabel("time since transit [days]")
    plt.ylabel("relative flux")
    plt.title("planet {0}".format(letter))
    plt.xlim(-0.3, 0.3)

with model:
    t_warp = pmx.eval_in_model(orbit._warp_times(t), map_soln)

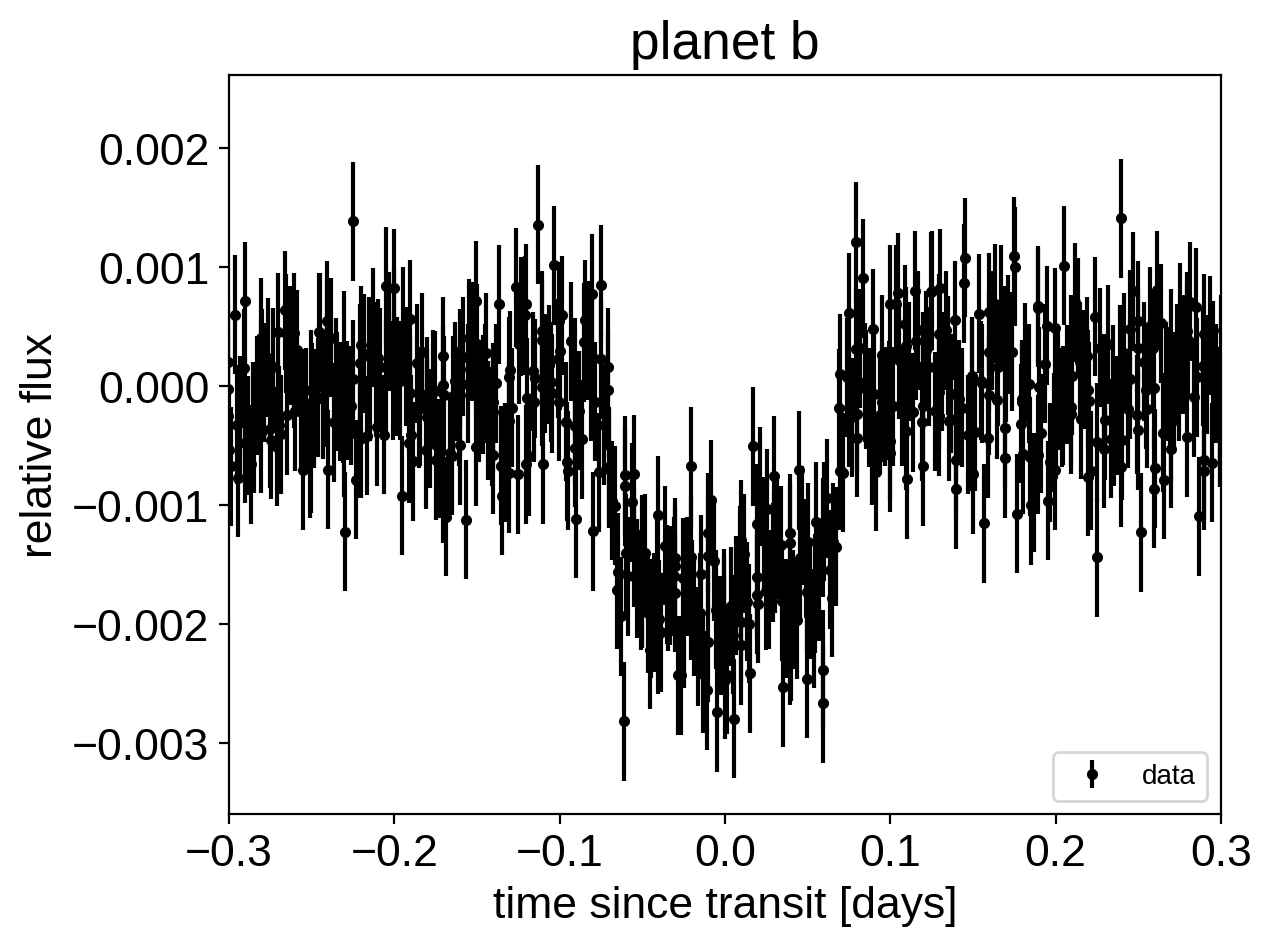

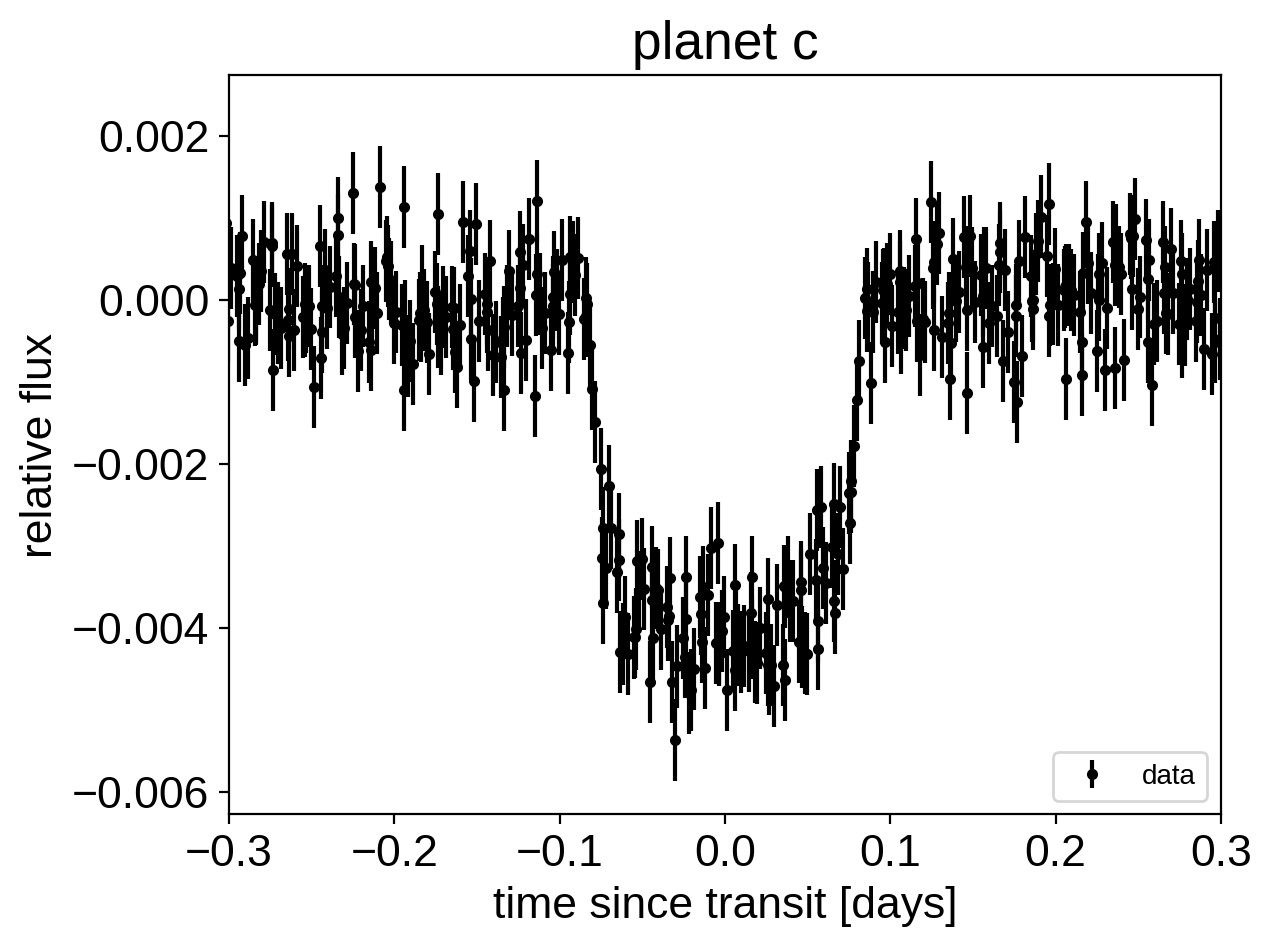

for n, letter in enumerate("bc"):
    plt.figure()

    p = map_soln["period"][n]
    other = map_soln["light_curves"][:, (n + 1) % 2]

    # NOTE: 't0' has already been subtracted!
    x_fold = (t_warp[:, n] + 0.5 * p) % p - 0.5 * p
    plt.errorbar(
        x_fold, y - other, yerr=yerr, fmt=".k", label="data", zorder=-1000
    )

    plt.legend(fontsize=10, loc=4)
    plt.xlim(-0.5 * p, 0.5 * p)
    plt.xlabel("time since transit [days]")
    plt.ylabel("relative flux")
    plt.title("planet {0}".format(letter))
    plt.xlim(-0.3, 0.3)
