RVs with multiple instruments

In this case study, we will look at how we can use exoplanet and PyMC3 to combine datasets from different RV instruments to fit the orbit of an exoplanet system. Before getting started, I want to emphasize that the exoplanet code doesn’t have strong opinions about how your data are collected, it only provides extensions that allow PyMC3 to evaluate some astronomy-specific functions. This means that you can build any kind of observation model that PyMC3 supports, and support for multiple instruments isn’t really a feature of exoplanet, even though it is easy to implement.

For the example, we’ll use public observations of Pi Mensae which hosts two planets, but we’ll ignore the inner planet because the significance of the RV signal is small enough that it won’t affect our results. The datasets that we’ll use are from the Anglo-Australian Planet Search (AAT) and the HARPS archive. As is commonly done, we will treat the HARPS observations as two independent datasets split in June 2015 when the HARPS hardware was upgraded. Therefore, we’ll consider three datasets that we will allow to have different instrumental parameters (RV offset and jitter), but shared orbital parameters and stellar variability. In some cases you might also want to have a different astrophyscial variability model for each instrument (if, for example, the observations are made in very different bands), but we’ll keep things simple for this example.

The AAT data are available from The Exoplanet Archive and the HARPS observations can be downloaded from the ESO Archive. For the sake of simplicity, we have extracted the HARPS RVs from the archive in advance using Megan Bedell’s harps_tools library.

To start, download the data and plot them with a (very!) rough zero point correction.

[3]:

import numpy as np
import pandas as pd
from astropy.io import ascii

aat = ascii.read(
    "https://exoplanetarchive.ipac.caltech.edu/data/ExoData/0026/0026394/data/UID_0026394_RVC_001.tbl"
)
harps = pd.read_csv(
    "https://raw.githubusercontent.com/exoplanet-dev/case-studies/main/data/pi_men_harps_rvs.csv",
    skiprows=1,
)
harps = harps.rename(lambda x: x.strip().strip("#"), axis=1)
harps_post = np.array(harps.date > "2015-07-01", dtype=int)

t = np.concatenate((aat["JD"], harps["bjd"]))
rv = np.concatenate((aat["Radial_Velocity"], harps["rv"]))
rv_err = np.concatenate((aat["Radial_Velocity_Uncertainty"], harps["e_rv"]))
inst_id = np.concatenate((np.zeros(len(aat), dtype=int), harps_post + 1))

inds = np.argsort(t)
t = np.ascontiguousarray(t[inds], dtype=float)
rv = np.ascontiguousarray(rv[inds], dtype=float)
rv_err = np.ascontiguousarray(rv_err[inds], dtype=float)
inst_id = np.ascontiguousarray(inst_id[inds], dtype=int)

inst_names = ["aat", "harps_pre", "harps_post"]
num_inst = len(inst_names)

for i, name in enumerate(inst_names):
    m = inst_id == i
    plt.errorbar(
        t[m], rv[m] - np.min(rv[m]), yerr=rv_err[m], fmt=".", label=name
    )

plt.legend(fontsize=10)
plt.xlabel("BJD")
_ = plt.ylabel("radial velocity [m/s]")
../../_images/tutorials_rv-multi_3_0.png

Then set up the probabilistic model. Most of this is similar to the model in the Radial velocity fitting tutorial, but there are a few changes to highlight:

  1. Instead of a polynomial model for trends, stellar varaiability, and inner planets, we’re using a Gaussian process here. This won’t have a big effect here, but more careful consideration should be performed when studying lower signal-to-noise systems.
  2. There are three radial velocity offests and three jitter parameters (one for each instrument) that will be treated independently. This is the key addition made by this case study.
[4]:

import pymc3 as pm
import exoplanet as xo
import aesara_theano_fallback.tensor as tt

import pymc3_ext as pmx
from celerite2.theano import terms, GaussianProcess

t_phase = np.linspace(-0.5, 0.5, 5000)

with pm.Model() as model:

    # Parameters describing the orbit
    log_K = pm.Normal("log_K", mu=np.log(300), sigma=10)
    log_P = pm.Normal("log_P", mu=np.log(2093.07), sigma=10)
    K = pm.Deterministic("K", tt.exp(log_K))
    P = pm.Deterministic("P", tt.exp(log_P))

    ecs = pmx.UnitDisk("ecs", testval=np.array([0.7, -0.3]))
    ecc = pm.Deterministic("ecc", tt.sum(ecs ** 2))
    omega = pm.Deterministic("omega", tt.arctan2(ecs[1], ecs[0]))
    phase = pmx.UnitUniform("phase")
    tp = pm.Deterministic("tp", 0.5 * (t.min() + t.max()) + phase * P)

    orbit = xo.orbits.KeplerianOrbit(
        period=P, t_periastron=tp, ecc=ecc, omega=omega
    )

    # Noise model parameters
    log_sigma_gp = pm.Normal("log_sigma_gp", mu=np.log(10), sigma=50)
    log_rho_gp = pm.Normal("log_rho_gp", mu=np.log(50), sigma=50)

    # Per instrument parameters
    means = pm.Normal(
        "means",
        mu=np.array([np.median(rv[inst_id == i]) for i in range(num_inst)]),
        sigma=200,
        shape=num_inst,
    )
    sigmas = pm.HalfNormal("sigmas", sigma=10, shape=num_inst)

    # Compute the RV offset and jitter for each data point depending on its instrument
    mean = tt.zeros(len(t))
    diag = tt.zeros(len(t))
    for i in range(len(inst_names)):
        mean += means[i] * (inst_id == i)
        diag += (rv_err ** 2 + sigmas[i] ** 2) * (inst_id == i)
    pm.Deterministic("mean", mean)
    pm.Deterministic("diag", diag)
    resid = rv - mean

    def rv_model(x):
        return orbit.get_radial_velocity(x, K=K)

    kernel = terms.SHOTerm(
        sigma=tt.exp(log_sigma_gp), rho=tt.exp(log_rho_gp), Q=1.0 / 3
    )
    gp = GaussianProcess(kernel, t=t, diag=diag, mean=rv_model)
    gp.marginal("obs", observed=resid)
    pm.Deterministic("gp_pred", gp.predict(resid, include_mean=False))
    pm.Deterministic("rv_phase", rv_model(P * t_phase + tp))

    map_soln = model.test_point
    map_soln = pmx.optimize(map_soln, [means])
    map_soln = pmx.optimize(map_soln, [means, phase])
    map_soln = pmx.optimize(map_soln, [means, phase, log_K])
    map_soln = pmx.optimize(map_soln, [means, tp, K, log_P, ecs])
    map_soln = pmx.optimize(map_soln, [sigmas, log_sigma_gp, log_rho_gp])
    map_soln = pmx.optimize(map_soln)

optimizing logp for variables: [means]
100.00% [14/14 00:00<00:00 logp = -4.454e+03]


message: Optimization terminated successfully.
logp: -5704.454860439323 -> -4454.328548558955
optimizing logp for variables: [phase, means]
100.00% [22/22 00:00<00:00 logp = -4.366e+03]


message: Optimization terminated successfully.
logp: -4454.328548558955 -> -4365.658178331195
optimizing logp for variables: [log_K, phase, means]
100.00% [29/29 00:00<00:00 logp = -1.406e+03]


message: Optimization terminated successfully.
logp: -4365.658178331195 -> -1405.917582078266
optimizing logp for variables: [ecs, log_P, log_K, phase, means]
100.00% [72/72 00:00<00:00 logp = -1.368e+03]


message: Desired error not necessarily achieved due to precision loss.
logp: -1405.917582078266 -> -1367.8658913401746
optimizing logp for variables: [log_rho_gp, log_sigma_gp, sigmas]
100.00% [21/21 00:00<00:00 logp = -8.517e+02]


message: Optimization terminated successfully.
logp: -1367.8658913401746 -> -851.6770265244609
optimizing logp for variables: [sigmas, means, log_rho_gp, log_sigma_gp, phase, ecs, log_P, log_K]
100.00% [126/126 00:00<00:00 logp = -8.428e+02]


message: Desired error not necessarily achieved due to precision loss.
logp: -851.6770265244609 -> -842.8016650345709

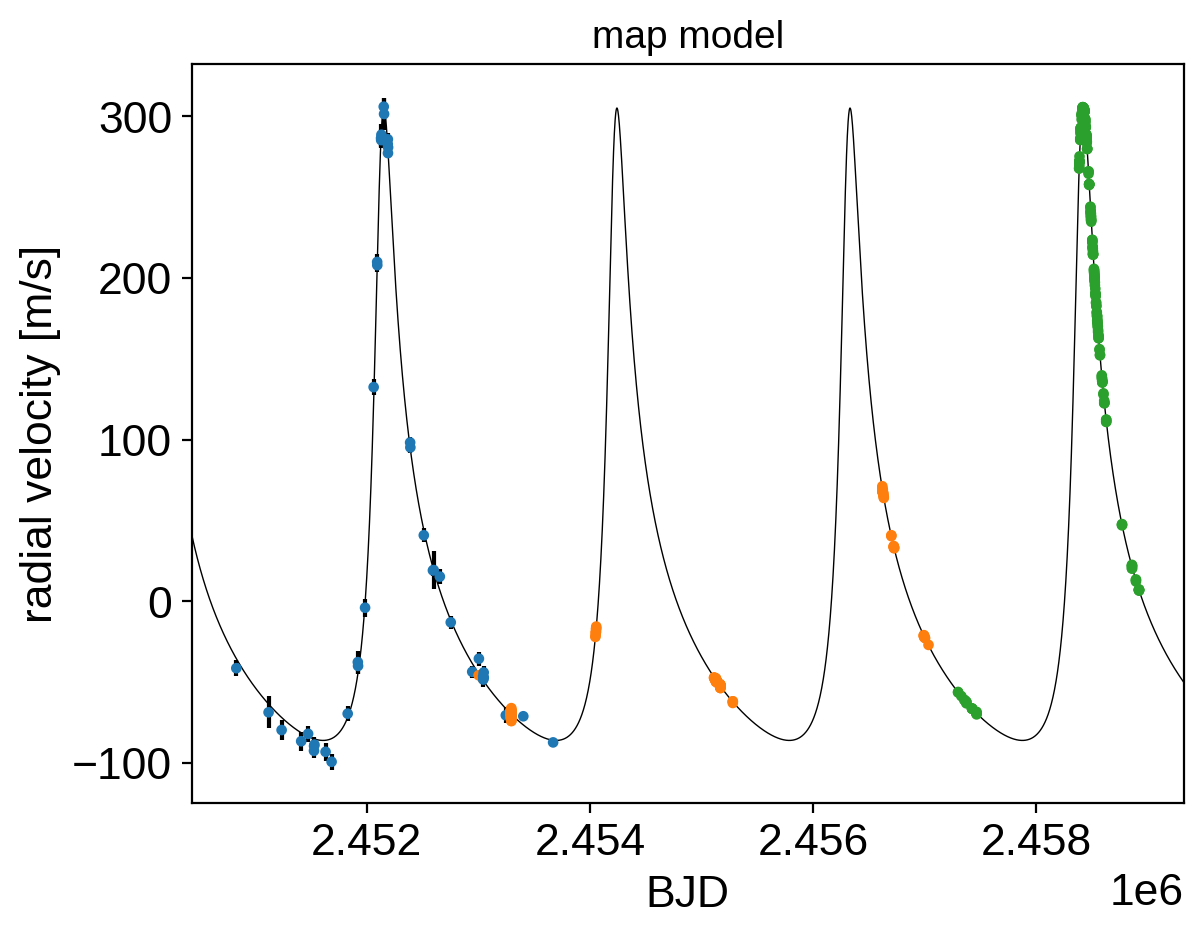

After fitting for the parameters that maximize the posterior probability, we can plot this model to make sure that things are looking reasonable:

[5]:

t_pred = np.linspace(t.min() - 400, t.max() + 400, 5000)
with model:
    plt.plot(
        t_pred, pmx.eval_in_model(rv_model(t_pred), map_soln), "k", lw=0.5
    )

detrended = rv - map_soln["mean"] - map_soln["gp_pred"]
plt.errorbar(t, detrended, yerr=rv_err, fmt=",k")
plt.scatter(
    t, detrended, c=inst_id, s=8, zorder=100, cmap="tab10", vmin=0, vmax=10
)
plt.xlim(t_pred.min(), t_pred.max())
plt.xlabel("BJD")
plt.ylabel("radial velocity [m/s]")
_ = plt.title("map model", fontsize=14)
../../_images/tutorials_rv-multi_7_0.png

That looks fine, so now we can run the MCMC sampler:

[6]:

np.random.seed(39091)
with model:
    trace = pmx.sample(
        tune=3500,
        draws=3000,
        start=map_soln,
        chains=2,
        cores=2,
        return_inferencedata=True,
    )

Multiprocess sampling (2 chains in 2 jobs)
NUTS: [sigmas, means, log_rho_gp, log_sigma_gp, phase, ecs, log_P, log_K]
100.00% [13000/13000 01:16<00:00 Sampling 2 chains, 0 divergences]
Sampling 2 chains for 3_500 tune and 3_000 draw iterations (7_000 + 6_000 draws total) took 78 seconds.

Then we can look at some summaries of the trace and the constraints on some of the key parameters:

[7]:

import corner
import arviz as az

corner.corner(trace, var_names=["P", "K", "tp", "ecc", "omega"])

az.summary(
    trace, var_names=["P", "K", "tp", "ecc", "omega", "means", "sigmas"]
)

[7]:
mean sd hdi_3% hdi_97% mcse_mean mcse_sd ess_bulk ess_tail r_hat
P 2089.120 0.462 2088.289 2089.986 0.006 0.004 7027.0 4638.0 1.0
K 195.695 0.610 194.543 196.858 0.007 0.005 7074.0 3679.0 1.0
tp 2456300.673 0.774 2456299.164 2456302.069 0.009 0.007 7078.0 4283.0 1.0
ecc 0.644 0.002 0.640 0.648 0.000 0.000 5901.0 4197.0 1.0
omega -0.519 0.006 -0.530 -0.509 0.000 0.000 7636.0 4738.0 1.0
means[0] 1.774 1.002 -0.032 3.656 0.012 0.009 6762.0 4431.0 1.0
means[1] 10709.380 0.540 10708.323 10710.364 0.007 0.005 6853.0 4558.0 1.0
means[2] 10729.154 0.676 10727.866 10730.403 0.008 0.006 7231.0 4161.0 1.0
sigmas[0] 2.976 1.459 0.002 5.299 0.027 0.019 2687.0 1512.0 1.0
sigmas[1] 0.876 0.112 0.671 1.094 0.001 0.001 7522.0 4266.0 1.0
sigmas[2] 0.508 0.044 0.427 0.593 0.001 0.000 6218.0 4769.0 1.0
../../_images/tutorials_rv-multi_11_1.png

And finally we can plot the phased RV curve and overplot our posterior inference:

[8]:

flat_samps = trace.posterior.stack(sample=("chain", "draw"))

mu = np.mean(flat_samps["mean"].values + flat_samps["gp_pred"].values, axis=-1)
mu_var = np.var(flat_samps["mean"], axis=-1)
jitter_var = np.median(flat_samps["diag"], axis=-1)
period = np.median(flat_samps["P"])
tp = np.median(flat_samps["tp"])

detrended = rv - mu
folded = ((t - tp + 0.5 * period) % period) / period
plt.errorbar(folded, detrended, yerr=np.sqrt(mu_var + jitter_var), fmt=",k")
plt.scatter(
    folded,
    detrended,
    c=inst_id,
    s=8,
    zorder=100,
    cmap="tab10",
    vmin=0,
    vmax=10,
)
plt.errorbar(
    folded + 1, detrended, yerr=np.sqrt(mu_var + jitter_var), fmt=",k"
)
plt.scatter(
    folded + 1,
    detrended,
    c=inst_id,
    s=8,
    zorder=100,
    cmap="tab10",
    vmin=0,
    vmax=10,
)

x = t_phase + 0.5
y = np.mean(flat_samps["rv_phase"], axis=-1)
plt.plot(x, y, "k", lw=0.5, alpha=0.5)
plt.plot(x + 1, y, "k", lw=0.5, alpha=0.5)

plt.axvline(1, color="k", lw=0.5)
plt.xlim(0, 2)
plt.xlabel("phase")
plt.ylabel("radial velocity [m/s]")
_ = plt.title("posterior inference", fontsize=14)
../../_images/tutorials_rv-multi_13_0.png

Citations

As described in the citation tutorial, we can use citations.get_citations_for_model to construct an acknowledgement and BibTeX listing that includes the relevant citations for this model.

[9]:

with model:
    txt, bib = xo.citations.get_citations_for_model()
print(txt)

This research made use of \textsf{exoplanet} \citep{exoplanet} and its
dependencies \citep{celerite2:foremanmackey17, celerite2:foremanmackey18,
exoplanet:arviz, exoplanet:astropy13, exoplanet:astropy18, exoplanet:pymc3,
exoplanet:theano}.

[10]:

print("\n".join(bib.splitlines()[:10]) + "\n...")


@misc{exoplanet,
  author = {Daniel Foreman-Mackey and Arjun Savel and Rodrigo Luger  and
            Eric Agol and Ian Czekala and Adrian Price-Whelan and
            Christina Hedges and Emily Gilbert and Luke Bouma and Tom Barclay
            and Timothy D. Brandt},
   title = {exoplanet-dev/exoplanet v0.5.0},
   month = may,
    year = 2021,
     doi = {10.5281/zenodo.1998447},
...
