Quick fits for TESS light curves¶

import pymc3 as pm
import aesara_theano_fallback.tensor as tt

import pymc3_ext as pmx
from celerite2.theano import terms, GaussianProcess


with pm.Model() as model:

    # Stellar parameters
    mean = pm.Normal("mean", mu=0.0, sigma=10.0)
    u = xo.QuadLimbDark("u")
    star_params = [mean, u]

    # Gaussian process noise model
    sigma = pm.InverseGamma("sigma", alpha=3.0, beta=2 * np.median(yerr))
    log_sigma_gp = pm.Normal("log_sigma_gp", mu=0.0, sigma=10.0)
    log_rho_gp = pm.Normal("log_rho_gp", mu=np.log(10.0), sigma=10.0)
    kernel = terms.SHOTerm(
        sigma=tt.exp(log_sigma_gp), rho=tt.exp(log_rho_gp), Q=1.0 / 3
    )
    noise_params = [sigma, log_sigma_gp, log_rho_gp]

    # Planet parameters
    log_ror = pm.Normal(
        "log_ror", mu=0.5 * np.log(depth_guess * 1e-3), sigma=10.0
    )
    ror = pm.Deterministic("ror", tt.exp(log_ror))

    # Orbital parameters
    log_period = pm.Normal("log_period", mu=np.log(period_guess), sigma=1.0)
    period = pm.Deterministic("period", tt.exp(log_period))
    t0 = pm.Normal("t0", mu=t0_guess, sigma=1.0)
    log_dur = pm.Normal("log_dur", mu=np.log(0.1), sigma=10.0)
    dur = pm.Deterministic("dur", tt.exp(log_dur))
    b = xo.distributions.ImpactParameter("b", ror=ror)

    # Set up the orbit
    orbit = xo.orbits.KeplerianOrbit(period=period, duration=dur, t0=t0, b=b)

    # We're going to track the implied density for reasons that will become clear later
    pm.Deterministic("rho_circ", orbit.rho_star)

    # Set up the mean transit model
    star = xo.LimbDarkLightCurve(u)

    def lc_model(t):
        return mean + 1e3 * tt.sum(
            star.get_light_curve(orbit=orbit, r=ror, t=t), axis=-1
        )

    # Finally the GP observation model
    gp = GaussianProcess(
        kernel, t=x, diag=yerr ** 2 + sigma ** 2, mean=lc_model
    )
    gp.marginal("obs", observed=y)

    # Double check that everything looks good - we shouldn't see any NaNs!
    print(model.check_test_point())

    # Optimize the model
    map_soln = model.test_point
    map_soln = pmx.optimize(map_soln, [sigma])
    map_soln = pmx.optimize(map_soln, [ror, b, dur])
    map_soln = pmx.optimize(map_soln, noise_params)
    map_soln = pmx.optimize(map_soln, star_params)
    map_soln = pmx.optimize(map_soln)

with model:
    gp_pred, lc_pred = pmx.eval_in_model(
        [gp.predict(y, include_mean=False), lc_model(x)], map_soln
    )

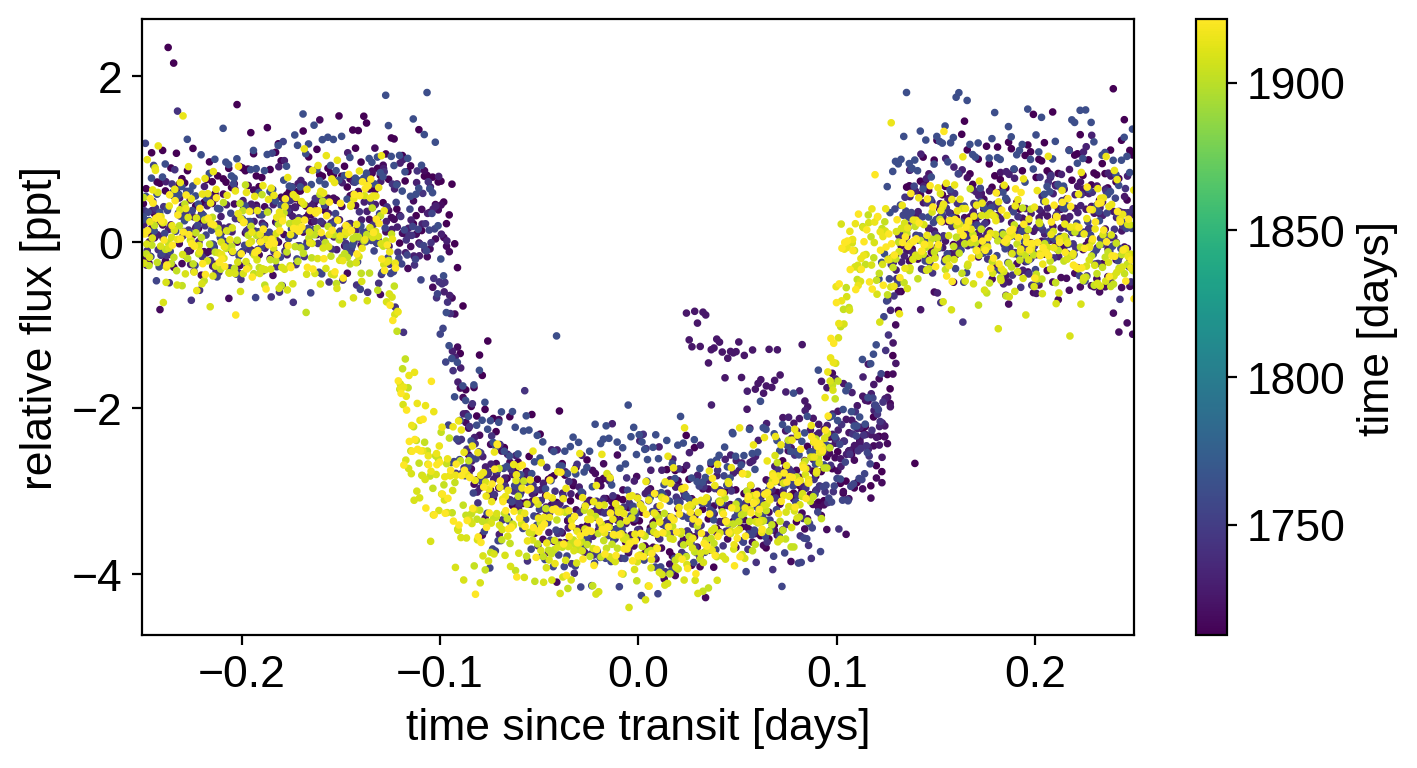

plt.figure(figsize=(8, 4))
x_fold = (x - map_soln["t0"] + 0.5 * map_soln["period"]) % map_soln[
    "period"
] - 0.5 * map_soln["period"]
inds = np.argsort(x_fold)
plt.scatter(x_fold, y - gp_pred - map_soln["mean"], c=x, s=3)
plt.plot(x_fold[inds], lc_pred[inds] - map_soln["mean"], "k")
plt.xlabel("time since transit [days]")
plt.ylabel("relative flux [ppt]")
plt.colorbar(label="time [days]")
_ = plt.xlim(-0.25, 0.25)

np.random.seed(286923464)
with model:
    trace = pmx.sample(
        tune=2000,
        draws=2000,
        start=map_soln,
        chains=2,
        cores=2,
        return_inferencedata=True,
    )

az.summary(trace)

import corner

_ = corner.corner(
    trace, var_names=["period", "ror", "b"], truths=[6.134980, 0.05538, 0.125]
)

from astroquery.mast import Catalogs

star = Catalogs.query_object("TIC 286923464", catalog="TIC", radius=0.001)
tic_rho_star = float(star["rho"]), float(star["e_rho"])
print("rho_star = {0} ± {1}".format(*tic_rho_star))

# Extract the implied density from the fit
rho_circ = np.repeat(np.asarray(trace.posterior["rho_circ"]).flatten(), 100)

# Sample eccentricity and omega from their priors (the math might
# be a little more subtle for more informative priors, but I leave
# that as an exercise for the reader...)
ecc = np.random.uniform(0, 1, len(rho_circ))
omega = np.random.uniform(-np.pi, np.pi, len(rho_circ))

# Compute the "g" parameter from Dawson & Johnson and what true
# density that implies
g = (1 + ecc * np.sin(omega)) / np.sqrt(1 - ecc ** 2)
rho = rho_circ / g ** 3

# Re-weight these samples to get weighted posterior samples
log_weights = -0.5 * ((rho - tic_rho_star[0]) / tic_rho_star[1]) ** 2
weights = np.exp(log_weights - np.max(log_weights))

# Estimate the expected posterior quantiles
q = corner.quantile(ecc, [0.16, 0.5, 0.84], weights=weights)
print(
    "eccentricity = {0:.2f} +{1[1]:.2f} -{1[0]:.2f}".format(q[1], np.diff(q))
)

_ = corner.corner(
    np.vstack((ecc, omega)).T,
    weights=weights,
    truths=[0.316, None],
    plot_datapoints=False,
    labels=["eccentricity", "omega"],
)

with model:
    txt, bib = xo.citations.get_citations_for_model()
print(txt)

print("\n".join(bib.splitlines()[:10]) + "\n...")
